New
Item No.: 2006300025

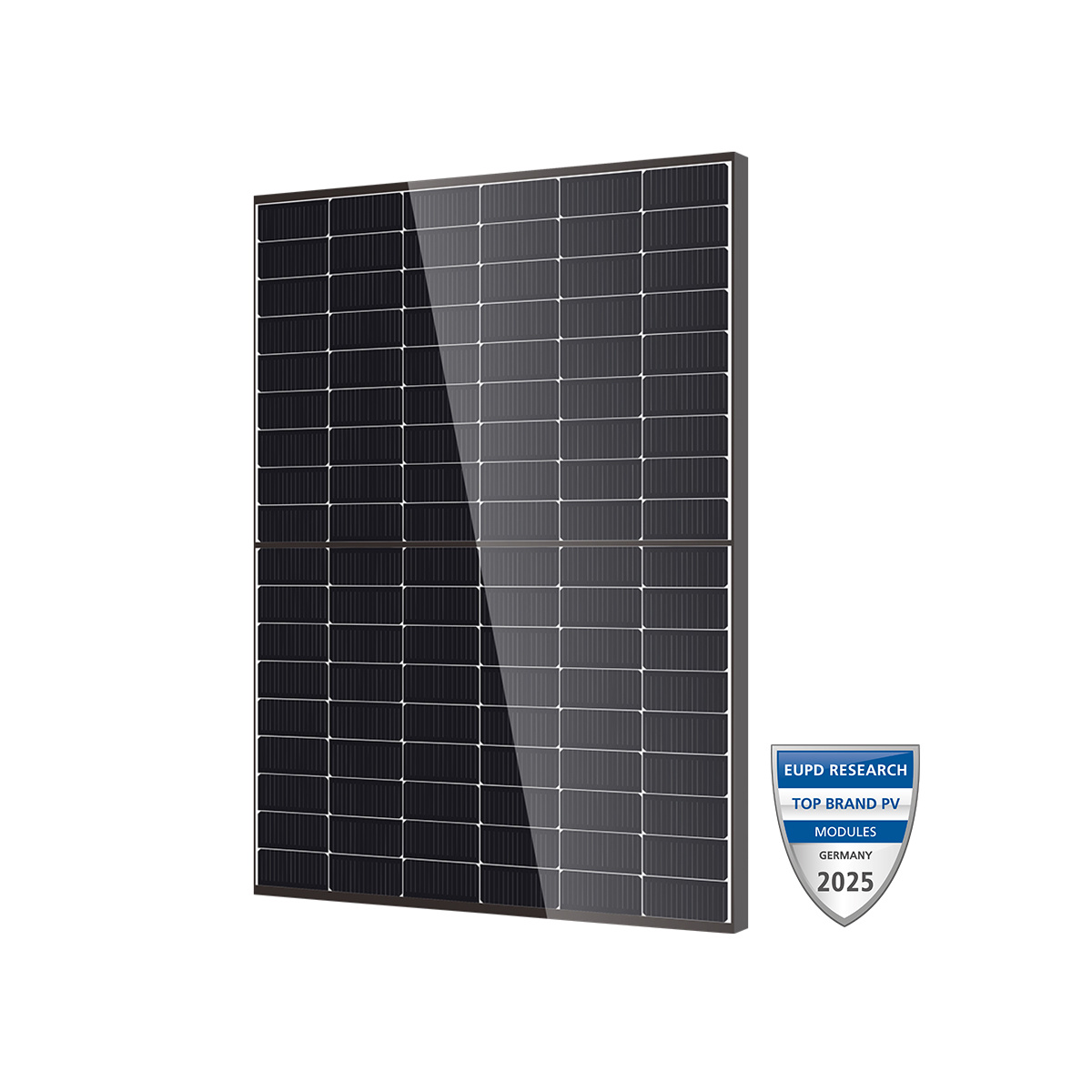

DMEGC DM455M10RT-B54HBT
glass/glass, transparent, EVO2A, Infinity RT
available
Merkmale
Length [mm]
1,762
Width [mm]
1,134
Height [mm]
30
Weight [kg]
24,5
Type of DC-connector
EVO2A
max. System Voltage [V]
1,500
Module Efficiency [%]
22,8
Number of cells
108
Cell technology
TOPCON
Length of connecting cable [m]
1,2
Current value String fuse [A]
30
Color backsheet
TRANSPARENT AND GLASS
Frame Colour
BLACK
Product warranty (years)
25
WEEE-Registrier-Nr. DE
50188598
Module design
BIFACIAL
Nominal Power [Wp]
455
Max. Design Load Push [N/m²]
3,600
Max. Design Load Pull [N/m²]
1,600
Description
Rated power 455 Wp
monocrystalline cell
LxWxH: 1762x1134x30 mm
Power tolerance 0/+3 %
Max. surface load: 3,6 kPa
Connector type: EVO2A
Module efficiency: 22,8 %
IEC 61215 certified
IEC 61730 certified
Glass: Anti Reflective Coating (ARC)
Please refer to the latest warranty document of the manufacturer.
monocrystalline cell
LxWxH: 1762x1134x30 mm
Power tolerance 0/+3 %
Max. surface load: 3,6 kPa
Connector type: EVO2A
Module efficiency: 22,8 %
IEC 61215 certified
IEC 61730 certified
Glass: Anti Reflective Coating (ARC)
Please refer to the latest warranty document of the manufacturer.
