Numero di articolo: 7401100075

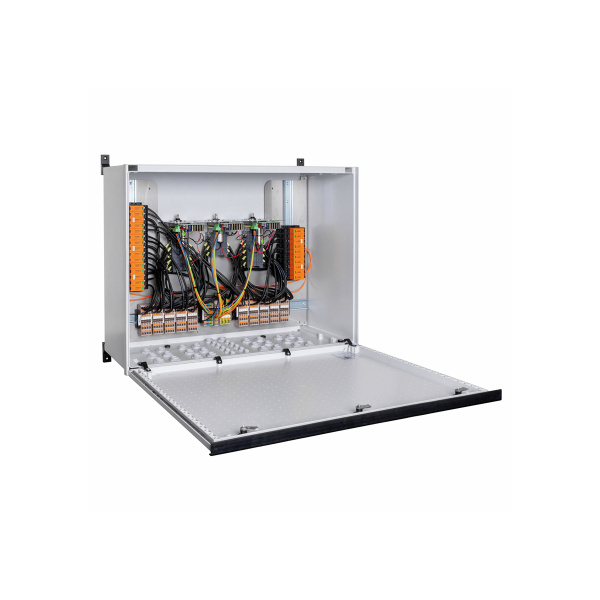

DC con-box 10 MPPT 1-2 str. SPD Type 1/2
Weidmüller
disponibile per settimana: 44/2026
Merkmale
Profondità [mm]
237
Larghezza [mm]
600
Altezza [mm]
436
Peso [kg]
43,461
Tensione massima CC [V]
1,100
Numero di trackers MPP
10
N. di registrazione RAEE DE
73937473
Tipo di connessione DC
Verschraubung
Tipo di scaricatore
Tipo I/II
Corrente massima in ingresso per stringa [A]
41
Corrente massima in ingresso (I max) [A]
51,25
Protezioni di sovratensione
Si
Numero massimo di stringhe
20
Descrizione
Max. string voltage Uoc: 1000V
Combined arrester class/type I + II with signal contact
Connection of the signal contact via cable glands (8-12mmØ) max. conductor cross-section: 1.5mm²
Connection of functional earth via cable glands (8-12 mmØ) Conductor cross-section: 16-25 mm²
Protection class: IP65
All built into a glass fibre reinforced plastic housing Dimensions HxWxD: 330x558x175 mm
Combined arrester class/type I + II with signal contact
Connection of the signal contact via cable glands (8-12mmØ) max. conductor cross-section: 1.5mm²
Connection of functional earth via cable glands (8-12 mmØ) Conductor cross-section: 16-25 mm²
Protection class: IP65
All built into a glass fibre reinforced plastic housing Dimensions HxWxD: 330x558x175 mm
