Pozostałe zapasy
Przedmiot nr: 3602000085

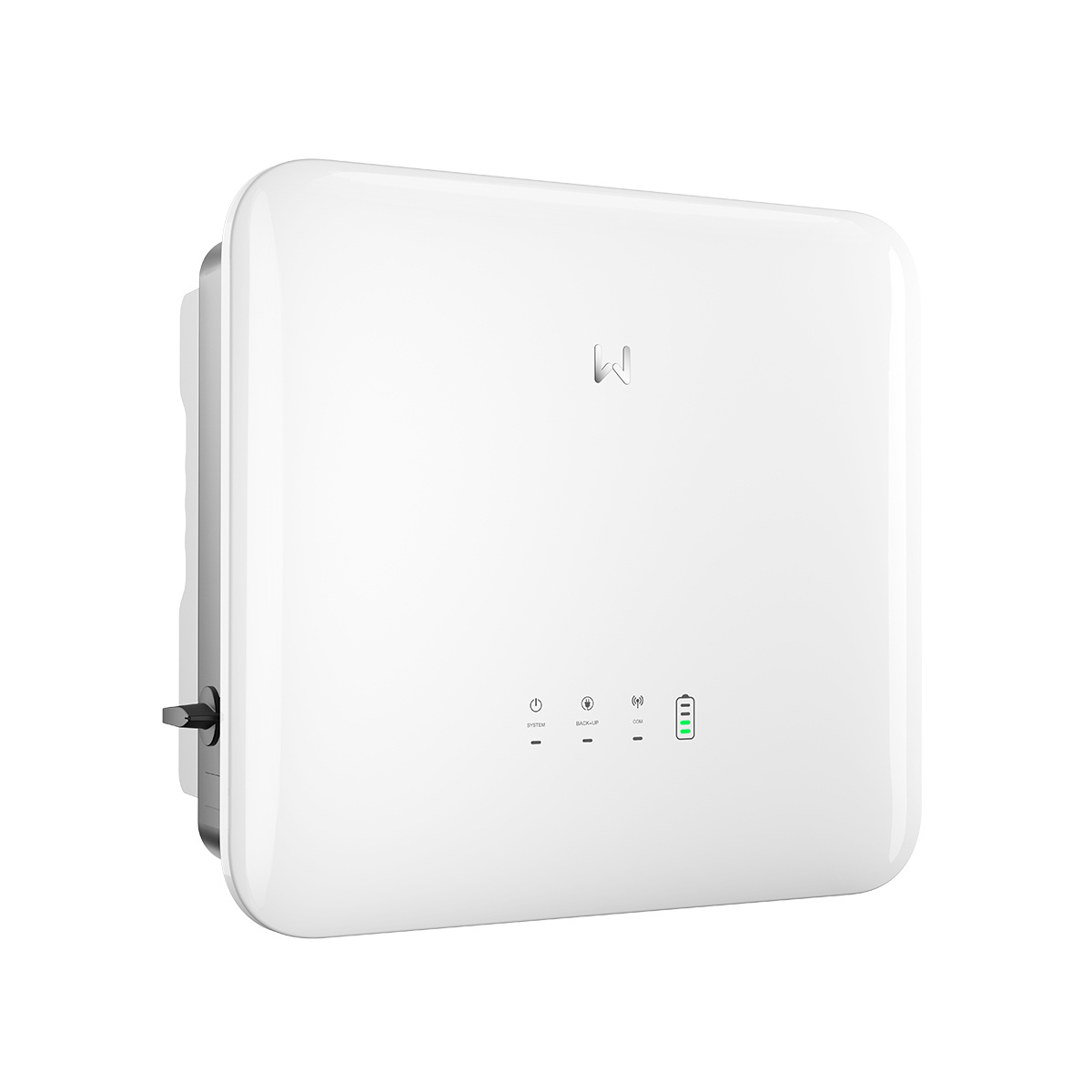

Goodwe GW12K-ET-20
hybrid inverter 3~
9 sztuki dostępna
Merkmale
Głębokość [mm]
221
Szerokość [mm]
496
Wysokość [mm]
460
Masa [kg]
25
Konektor DC
MC4
Maks. napięcie DC [V]
1,000
Moc znamionowa AC [VA]
12,000
Moc DC [W]
12,000
Wydajność maks. () [%]
98,2
liczba faz
3
Ilość trackerów MPP
3
Typ falownika
inwerter hybrydowy
Stopień ochrony IP
52
66
WEEE-Registrier-Nr. DE
33154372
Opis
Further development of the popular ET Plus+ series
Hybrid inverter for high-voltage batteries
Features:
max. input current per MPPT: 16 A
Incl. DC overvoltage protection type II
Integrated ripple control receiver connection
Potential-free contact for targeted control of loads (e.g. SGready heat pumps)
WLAN dongle included / LAN dongle optionally available
DC load-break switch
For mains parallel operation
Protection class: IP66
European efficiency: 97.5%
H x W x D 460/496/221 mm
Connectable PV power: 19.200 Wp
AC rated power: 12.000
max. DC input voltage: 1000V
Without display
High-voltage battery (see manufacturer documents for compatibility)
Backup function (backup power, 3-phase 12.000W)
Integrated smart meter
Warranty 5 years
optional up to 10 years
The manufacturer's country-specific warranty & service conditions apply
Hybrid inverter for high-voltage batteries
Features:
max. input current per MPPT: 16 A
Incl. DC overvoltage protection type II
Integrated ripple control receiver connection
Potential-free contact for targeted control of loads (e.g. SGready heat pumps)
WLAN dongle included / LAN dongle optionally available
DC load-break switch
For mains parallel operation
Protection class: IP66
European efficiency: 97.5%
H x W x D 460/496/221 mm
Connectable PV power: 19.200 Wp
AC rated power: 12.000
max. DC input voltage: 1000V
Without display
High-voltage battery (see manufacturer documents for compatibility)
Backup function (backup power, 3-phase 12.000W)
Integrated smart meter
Warranty 5 years
optional up to 10 years
The manufacturer's country-specific warranty & service conditions apply
Downloads
