Item No.: 3001200140

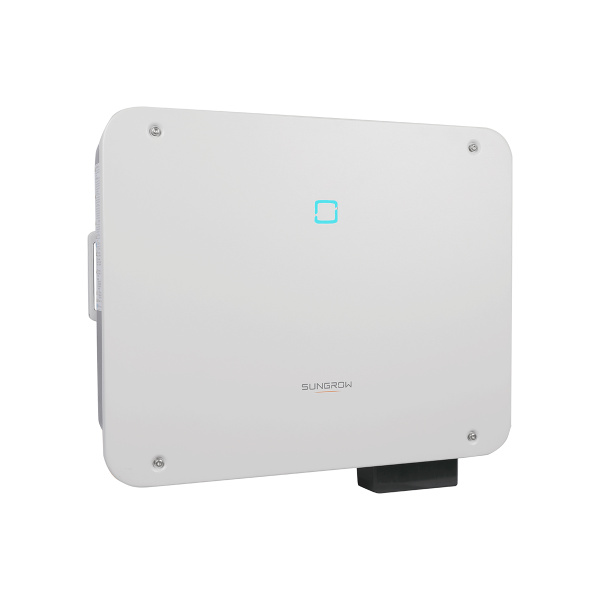

Sungrow SG40CX-P2 V12
inverter 3~
Prices and availabilities visible only after login
Merkmale
Depth [mm]
245
Width [mm]
645
Height [mm]
575
Weight [kg]
40
Type of DC-connector
MC4
max. input voltage [V]
1100
AC-nominal power [VA]
40000
DC-nominal power [W]
56000
max. efficiency [%]
98,5
number of grid input phases
3
number of MPP-trackers
4
Inverter technologie
GRID FEED-IN INVERTER
protection rating
66
WEEE-Registrier-Nr. DE
28316743
Description
AC output power: 40000VA
Max. PV input Voltage: 1100V
euro efficiency: 98,3%
Protection rating: IP66
W x D x H 645 / 575 / 245 mm
Manufacturer Warranty 5 years,
can be extended to 15 years.
It applies the warranty conditions
of the manufacturer, which are valid
at delivery.
Max. PV input Voltage: 1100V
euro efficiency: 98,3%
Protection rating: IP66
W x D x H 645 / 575 / 245 mm
Manufacturer Warranty 5 years,
can be extended to 15 years.
It applies the warranty conditions
of the manufacturer, which are valid
at delivery.
VDE-AR-N 4105:2018-11
VDE-AR-N 4110:2018-11
Not for Austria! No TOR D4
VDE-AR-N 4110:2018-11
Not for Austria! No TOR D4
Attention, if the inverter is operated in a system where more than 1000V DC voltage may occur, then the enclosed MC4 field plugs and sockets must not be used. In this case please use Evo2 plugs or sockets.
