Neu
Artikel-Nr.: 2006700006

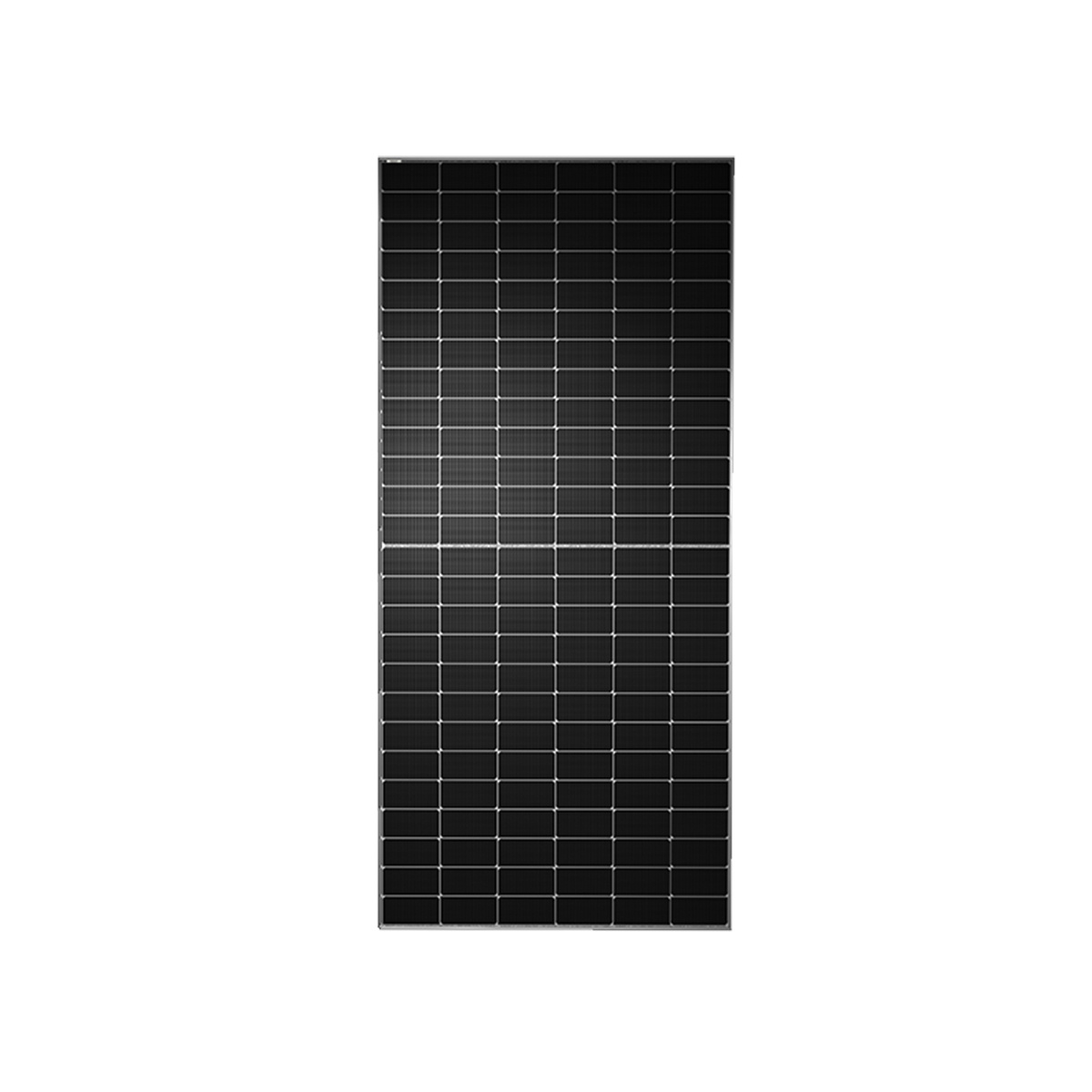

TONGWEI TWMNF-66HD720
Glas/Glas, White, BiFi, TNC 1.0
Verfügbar ab KW: 28/2026
Merkmale
Länge [mm]
2.384
Breite [mm]
1.303
Höhe [mm]
33
GEWICHT [Kilogramm]
37,9
Typ DC-Anschluss
TW-PVCON-01
max. Systemspannung [V]
1.500
Modulwirkungsgrad [%]
23,2
Zellanzahl
132
Zelltechnologie
TOPCON
Länge der Anschlussleitung [m]
+0,4/-0,2
Stromstärke Strangsicherung [A]
35
Optik
WHITE
Rahmenfarbe
SILVER
Produktgarantie (Jahre)
12
WEEE-Registrier-Nr. DE
52915227
Zelldesign
HALF CELL
Nennleistung STC [Wp]
720
Max. Designlast Druck [N/m²]
3.600
Max. Designlast Zug [N/m²]
1.600
Beschreibung
Nennleistung: 720 Wp
monokristalline Zelle
LxBxH: 2384 x 1303 x 33 mm
Leistungstoleranz: 0 / +3 %
Max. Flächenlast: 3,6 kPa
Steckertyp: TW-PVCON-01
Modulwirkungsgrad: 23,2 %
IEC 61215 zertifiziert
IEC 61730 zertifiziert
Glas: Anti Reflective Coating (ARC)
Bitte beachten Sie die aktuell gültige Garantieerklärung des Herstellers.
WEEE-Reg. Nr. für Deutschland: DE52915227
monokristalline Zelle
LxBxH: 2384 x 1303 x 33 mm
Leistungstoleranz: 0 / +3 %
Max. Flächenlast: 3,6 kPa
Steckertyp: TW-PVCON-01
Modulwirkungsgrad: 23,2 %
IEC 61215 zertifiziert
IEC 61730 zertifiziert
Glas: Anti Reflective Coating (ARC)
Bitte beachten Sie die aktuell gültige Garantieerklärung des Herstellers.
WEEE-Reg. Nr. für Deutschland: DE52915227
